+PEAK 6.5 Creedmoor Ammunition
Wickedly revolutionary when combined with the right rifle
I’ve been giddy for the last several weeks as I await the social media shit storm that will happen later today. I’ll get to read all the comments from folks with absolutely no experience with the new +PEAK ammo for the 6.5 Creedmoor. It’ll be my entertainment for the day—maybe the rest of the week. They’ll talk about how bad of an idea it is, how it answers a question no one was asking, about how it’s going to eat up barrels, and how they will just stick to their 270, 30-06 or 32 Winchester Special. You know what’s coming, it’s always the same, and it’ll be very similar to when the Weatherby 25 RPM was introduced in January. (You can see all the silliness on my Facebook page.)
If you want to read my review on the +PEAK 6.5 Creedmoor ammo for Field & Stream, click HERE., and in the video below you can see me shooting the +PEAK ammo out of 18- and 24-inch barrels, with the the actual velocities shown on the chronograph. That should satisfy most of the curiosity. What I want to focus on here is the paring of that cartridge with a specific rifle.

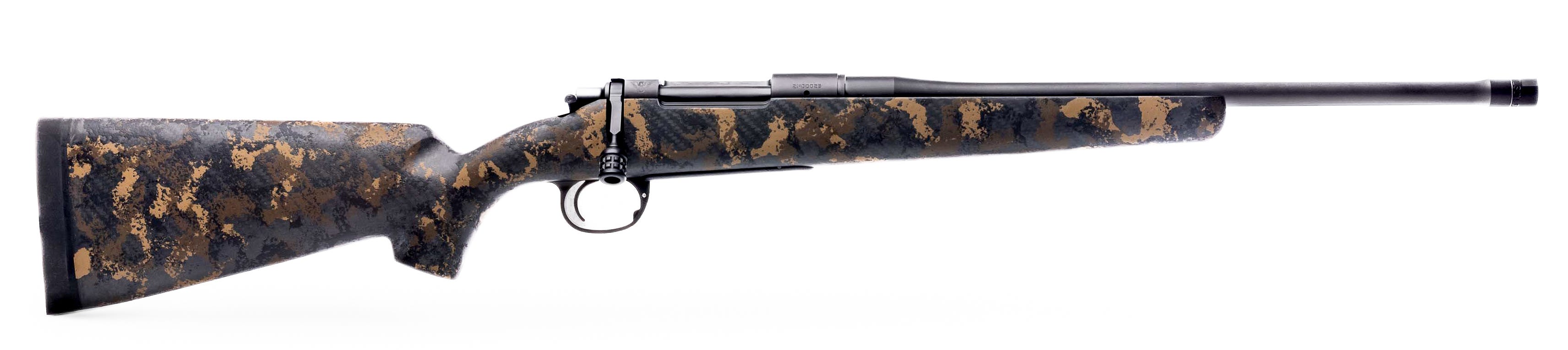

When I learned this new +PEAK load was coming out I wanted to see what it would do from a short suppressor friendly barrel out of a very lightweight rifle. After all, that’s the kind of rifle I like to hunt with and a powerful, lightweight, compact, suppressor friendly rifle has a lot of appeal to other hunters too. So, I called Bill Wilson and asked if he could loan me a Wilson Combat NULA in 6.5 Creedmoor with an 18-inch barrel.

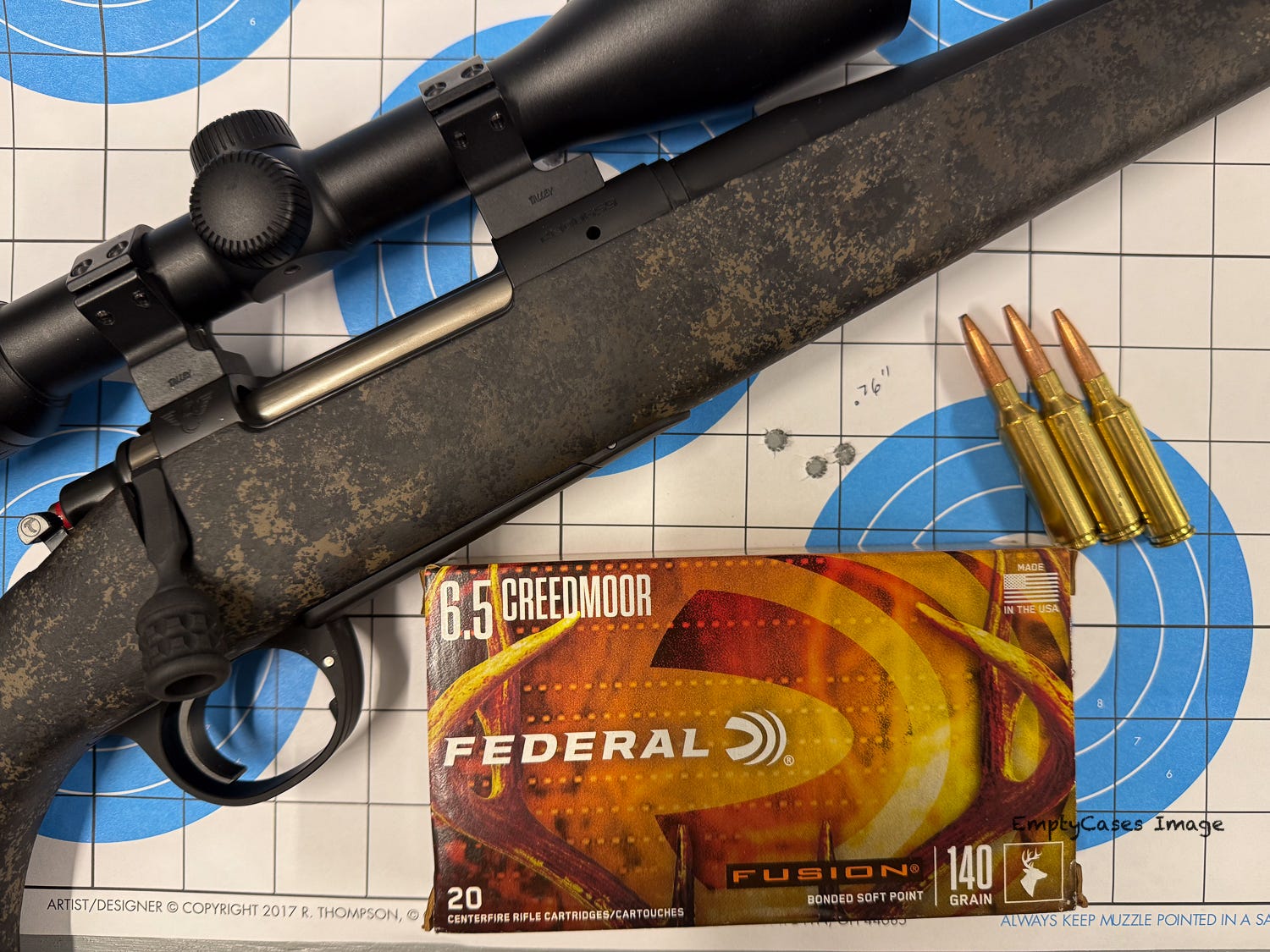

That rifle arrived about two weeks ago and out of the box it weighed 4.8 pounds! The first thing I did was mount a Swarovski Z3 riflescope in Talley lightweight rings. That upped the weight to 5.75 pounds. Next, I mounted a Banish Backcountry suppressor, and the rifle still weighed less than 6.4 pounds. After a quick bore sight, the first three shots using Federal’s 140-grain Fusion load out of the 18-inch barrel printed a three-shot group measuring 0.76-inch, with an average muzzle velocity of 2576 fps. After that, I shot three shots with the standard Federal 130-grain Terminal Ascent load and that group measured 1.11 inches with an average muzzle velocity of 2721 fps.

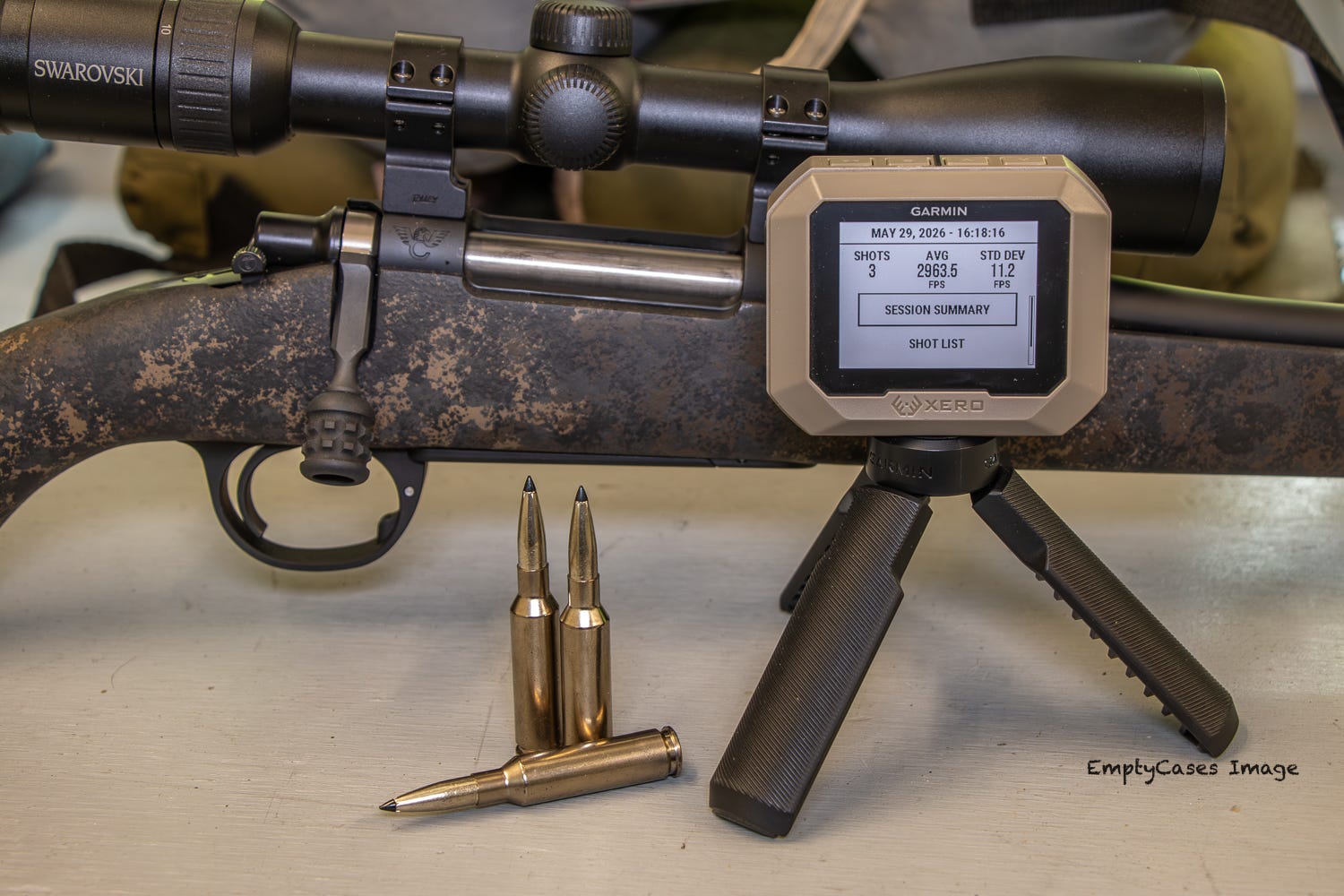

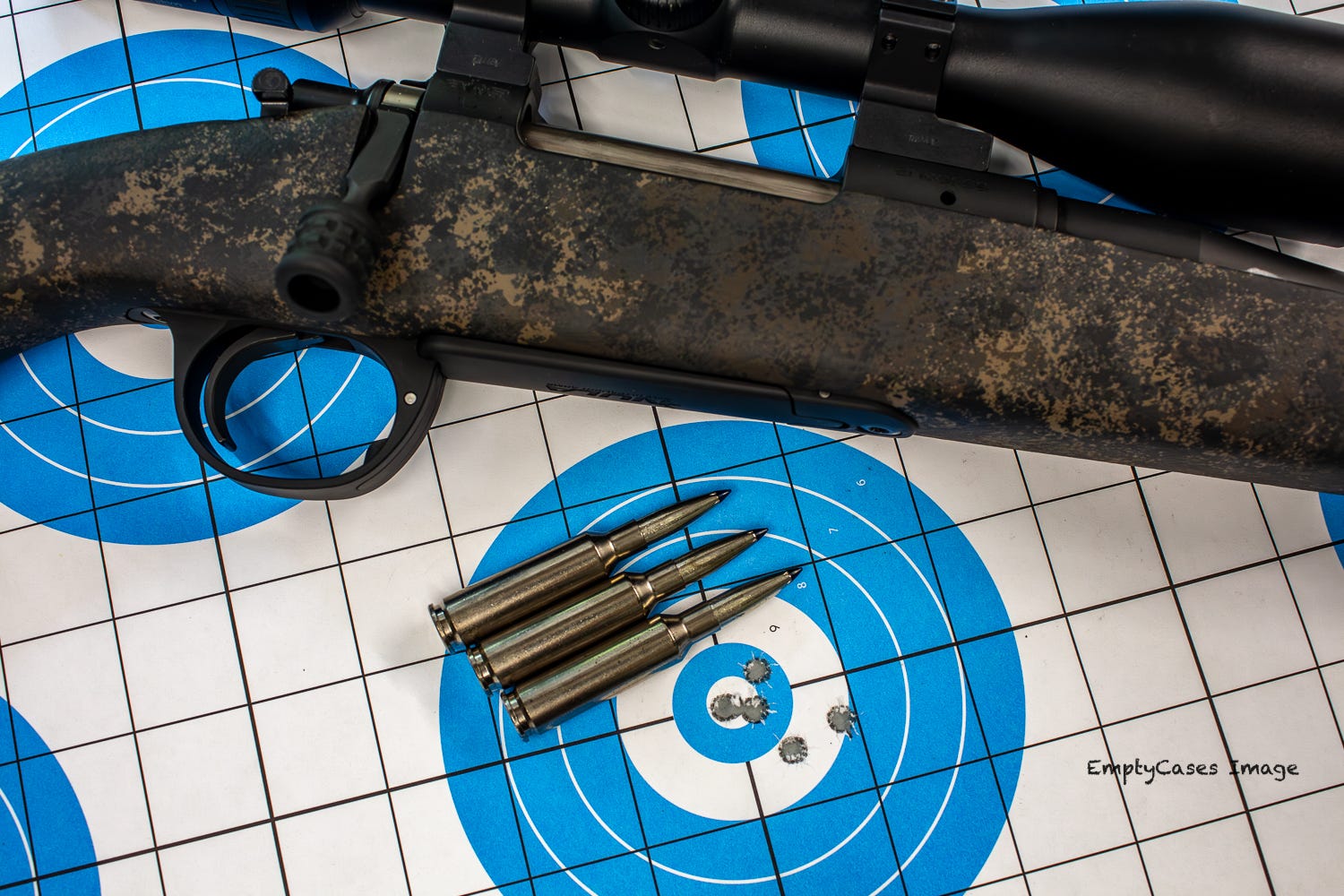

Then I tried a five-shot group with the new +PEAK 130-grain Terminal Ascent load. That group was right at an inch and the first three shots had an average muzzle velocity of 2963 fps, giving it a 1/3 second flight distance of 300 yards. Now I want you to think about that for just a minute. This is a field ready rifle weighing in at less than 6.4 pounds delivering MOA precision. At 6.62 pounds, Jeff Cooper’s grail weight for a Scout Rifle was heavier than that, and his often referenced original 30-06 load—a 150-grain bullet at 2700 fps—has less muzzle energy (2428 ft/lbs compared to 2534). Just as importantly, with the +PEAK 130-grain load, at 300 yards this light rifle and new ammo combination will drop less, drift less, and have more retained energy and velocity than any 130-grain factory load for a 270 Winchester when fired from a barrel shorter than 24 inches.

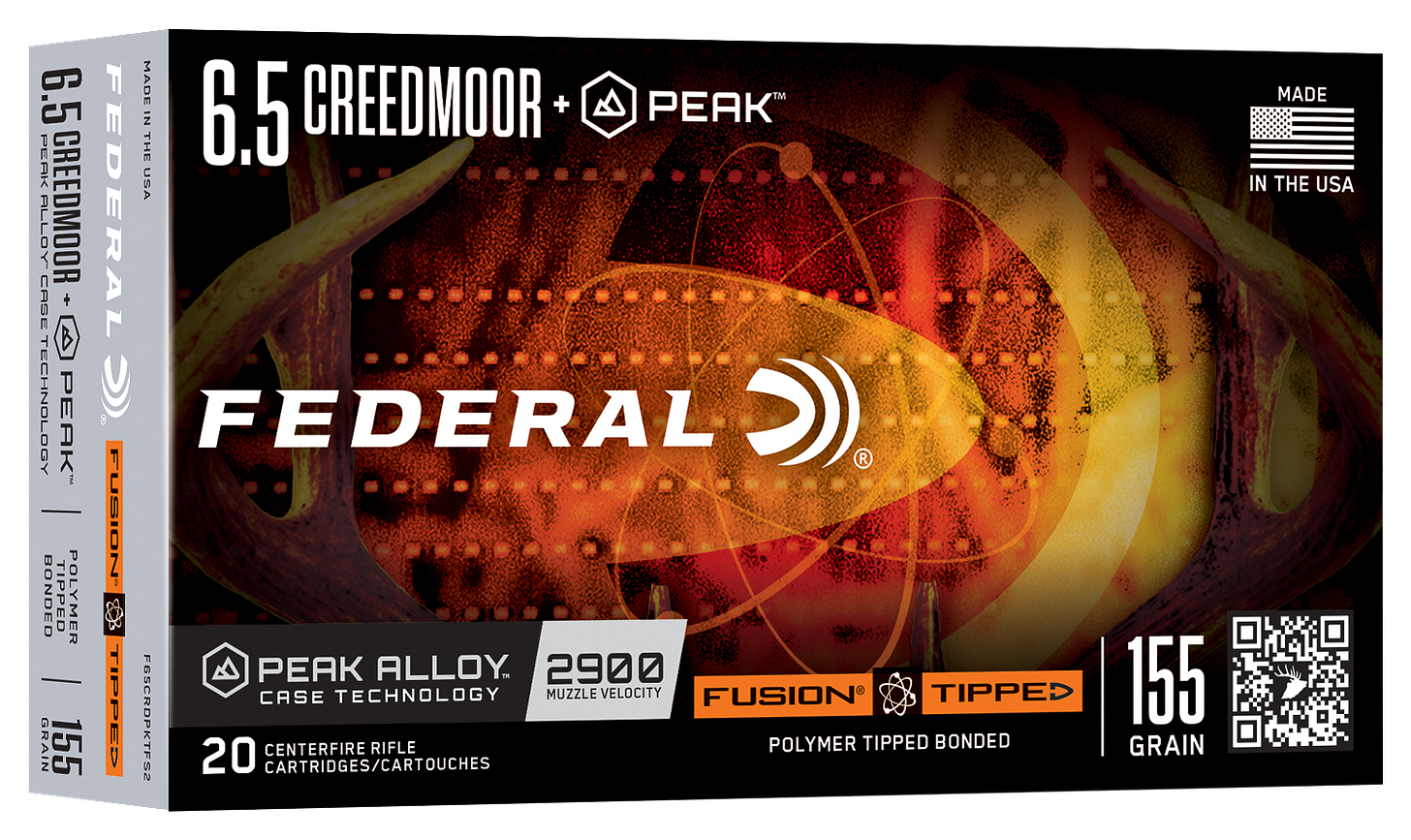

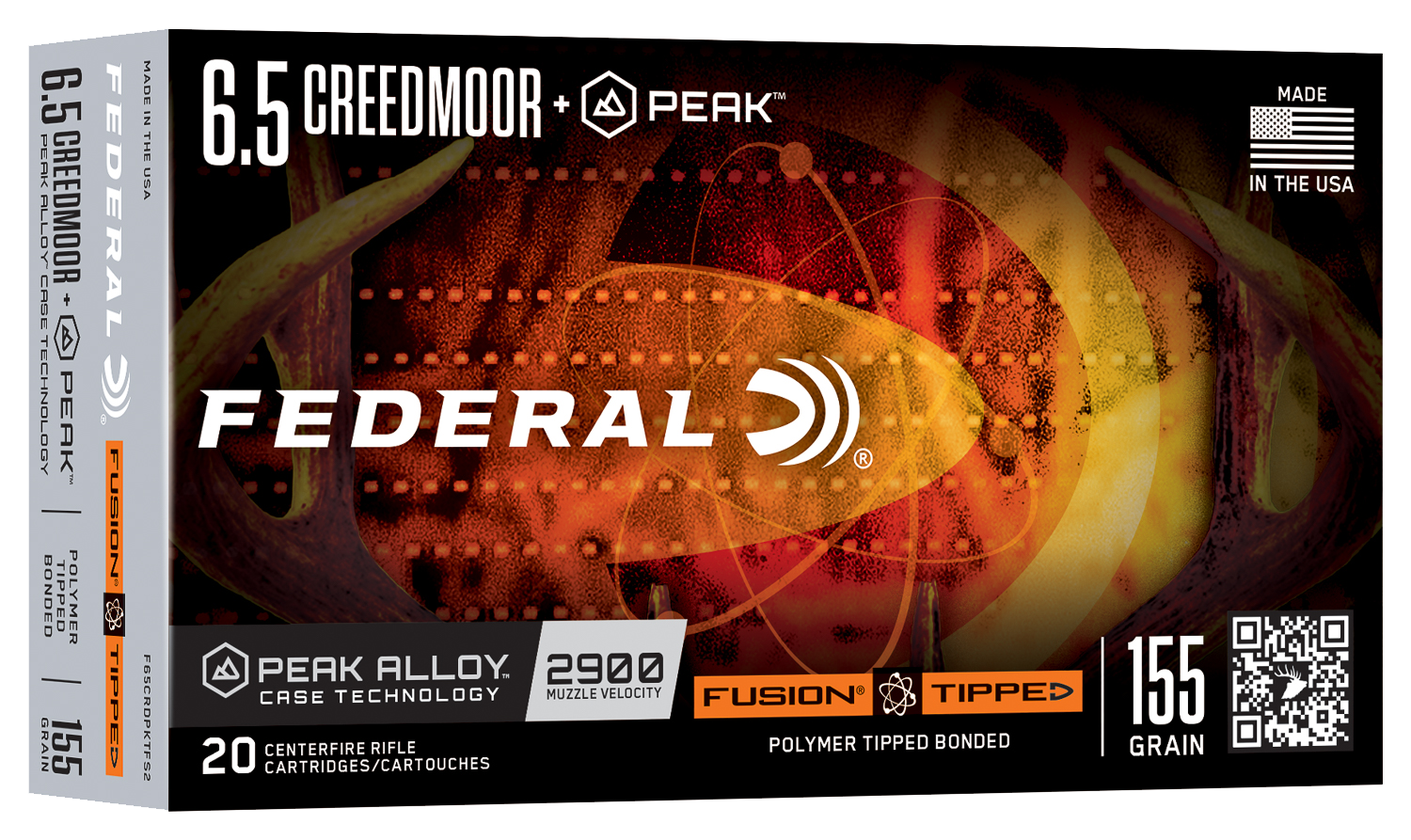

Let’s take it a step further. One of the other five +PEAK 6.5 Creedmoor loads Federal will offer is a 155-grain Tipped Fusion bullet at 2900 fps. I didn’t have this load to test, but I did test the 130-grain +PEAK load from an original 24-inch barreled NULA rifle, and it averaged 3108 fps—8 fps faster than the advertised 3100. So, there’s no evidence to suggest the 155-grain load will not make 2900 fps. If it does it will outperform any factory 150-gr. 30-06 Springfield load in every metric.
Now I’ve never been a 6.5 Creedmoor fan boy. I think it is a great cartridge, I’ve shot it a lot, and I’ve hunted with it a lot. Partly because during the media hunts I’ve been on that was the cartridge I was often given, but also partly because most of the new rifles I test are chambered in 6.5 Creedmoor. The 6.5 Creedmoor just never tickled that part of me that makes us like one cartridge or another. I guess you could say I have no emotional attachment to it.
However, with the availability of this new +PEAK ammo for the 6.5 Creedmoor, it’s a 270 Winchester. If you read my book, Rifle Cartridges for the Hunter, you know I have a soft spot for the 270, and now I can have one in a 4.8 pound rifle that is very suppressor friendly.
There are four final points I want to make, and the first two deal with rifle safety and throat erosion. The +PEAK 6.5 Creedmoor ammo runs at about 80,000 psi. Standard 6.5 Creedmoor loads have a MAP (Maximum Average Pressure) of 62,000 psi, so the concern for safety is understandable. However, brass-cased 6.5 Creedmoor proof loads exceed 80,000 psi, and the new Peak alloy cases are much stronger than brass cases. Yes, its substantially more pressure, but the 7mm Backcountry has proven these pressures are safe in modern rifles with the PEAK alloy cases.
Now what about throat erosion. History has shown that more pressure equals more/faster throat erosion. Federal says throat erosion with the +PEAK loads are “comparable” to standard Creedmoor loads. Well, no shit, everything is comparable, but comparable does not mean the same. I don’t see any way around +PEAK ammo not causing wear faster, but I also don’t see it as a major concern for any hunter. Let’s say—speculatively—a barrel will last for just 1000 rounds of +PEAK. It will cost you $2750.00 to shoot 1000 rounds. But more practically, this brings us the third point.
Unlike the 7mm Backcountry where factory ammo is only loaded in PEAK alloy cases, you can buy brass cased 6.5 Creedmoor ammo. No, it will not deliver the same ballistics as the +PEAK 6.5 Creedmoor ammo, but for a lot of your hunting it will probably be more than sufficient, and it will damn well serve you for most of the shooting practice you want to do with your hunting rifle. You don’t have to shoot the +PEAK 6.5 Creedmoor ammo all the time. Now, owning a 6.5 Creedmoor is kind of like owning one rifle that is a magnum and a non-magnum, sort of like the 357 Magnum and 38 Special revolver.
And fourth, I know some will scream that these steel alloy cases are not reloadable, but they are. As a matter of fact, I know PEAK alloy cases for the 7mm Backcountry are reloadable and Federal says they are planning to offer first-run unprimed +PEAK cases soon. I’m sure handloaders can expect related tools and data to follow soon as well. And if you do reload these cases, you don’t have to load to max, you could load them to anywhere between 62K and 80K psi. But in reality, it’s not that big of a deal. If you just use the +PEAK loads for hunting you should not need more than one box per year. (Included at the very bottom you’ll find Federal’s frequently asked questions—FAQ—document.)
But let me go back to that 4.8-pound NULA rifle, that with an 18-inch barrel, scope and suppressor, weighing less than 6.4 pounds, and that can deliver MOA precision with +PEAK ammo that’s ballistically superior to the 270 Winchester. That is a big deal because it’s a very accurate, portable, deadly, and low recoiling combination, that should handle most any hunting task. I’ll damned sure hold on to this rifle long enough to get through this deer season, and maybe even longer.
Of course, I’ve got this thing for NULA rifles, but that’s another story.
FEDERAL +PEAK 6.5 CREEDMOOR FAQ
Have a question about new 6.5 Creedmoor +Peak? Let’s address them!
Q: What is 6.5 Creedmoor +Peak?
A: It is an all-new high-pressure version of the trusted 6.5 Creedmoor cartridge. It has the same external dimensions as conventional 6.5 Creedmoor, but it’s loaded to 80,000 psi (opposed to 6.5 Creedmoor’s standard 65,000 psi), producing muzzle velocities that are up to 300 fps faster while maintaining similar perceived recoil.
Q: Can I shoot 6.5 Creedmoor +Peak ammunition in my existing 6.5 Creedmoor rifle, which is not stamped “6.5 Creedmoor +Peak”?
A: Our testing has shown 6.5 Creedmoor +Peak operates in a variety of 6.5 Creedmoor firearm platforms. Refer to your rifle manufacturer for recommendations on compatibility with high-pressure ammunition.
Q: Do you have additional tips for shooting 6.5 Creedmoor + Peak?
While lubing your rifle after use is recommended for gun storage and maintenance, it is important to ensure your chamber is clean and dry before use. Using any ammunition, including ammunition with Peak Alloy cases, in heavily lubed chambers may damage your rifle.
Q: Can I shoot 6.5 Creedmoor +Peak ammunition in my 6.5 Creedmoor Bergara or CVA rifle?
A: Federal’s 6.5 Creedmoor +Peak is compatible with 6.5 Creedmoor rifles from Bergara and CVA. However, 6.5 Creedmoor + Peak ammunition is not recommended for use in CVA Scout rifles.
Q: Can I use 6.5 Creedmoor + Peak in my 6.5 Creedmoor AR-10 platform rifle?
A: Consult your rifle manufacturer for recommendations on compatibility with high-pressure ammunition.
Q: Why would I shoot 6.5 Creedmoor +Peak over 6.5 Creedmoor?
A: The added energy of 6.5 Creedmoor +Peak produces velocities approximately 300 fps faster (depending on the specific load and barrel length) than conventional 6.5 Creedmoor. This added velocity, combined with the inherently aerodynamic, heavier-for-caliber 6.5 bullets, reduces wind drift and drop, while providing the energy needed to handle a wider variety of North American big game.
Q: Why would I shoot 6.5 Creedmoor +Peak over 6.5 PRC?
A: By extracting enhanced performance from the 6.5 Creedmoor cartridge, 6.5 Creedmoor +Peak provides ballistics that meet or exceed those of 6.5 PRC, with less felt recoil, less weight, less cost—and without buying a new rifle (consult your rifle manufacturer). Also, the 6.5 Creedmoor is a more compact, short-action more rifle platform than 6.5 PRC.
Q: Is 6.5 Creedmoor +Peak reloadable?
A: Yes, and Federal is planning to offer first-run unprimed cases for handloaders. Consult your reloading equipment manufacturer for recommendations pertaining to this cartridge.
Q: How does the perceived recoil of 6.5 Creedmoor +Peak compare to standard 6.5 Creedmoor?
A: Despite the gain in energy and velocity, perceived recoil is comparable.
Q: Is Peak Alloy case technology required to load 6.5 Creedmoor +Peak?
A: Yes, to be loaded at a pressure of 80,000 psi and achieve velocity advantages over 6.5 Creedmoor.
Q: How do barrel life and firearm wear compare to that of standard 6.5 Creedmoor?
A: Internal testing has shown that wear caused by 6.5 Creedmoor +Peak is comparable to that of wear caused by brass-case 6.5 Creedmoor. Refer to your firearm manufacturer resources for rifle-specific information.
Q: What material is used in Peak Alloy case technology?
A: Patented Peak Alloy case technology is fundamentally different than brass cases. It combines a proprietary manufacturing process and a unique steel alloy that allows for higher pressure cartridges than standard brass. Similar alloys are used in manufacturing safes, nuclear reactors and other high-strength applications.
Q: Are cases built with Peak Alloy technology more susceptible to rust or corrosion than conventional cases?
A: Peak Alloy cases feature durable nickel plating that protects against corrosion and rust and provides next-level protection from the elements. As with all ammunition, 6.5 Creedmoor +Peak should be stored in cool, dry conditions to maximize shelf life.
Q: Can I use 6.5 Creedmoor +Peak with my suppressor?
A: The ability to run shorter barrels topped with a suppressor while maintaining high velocities is one of the many benefits 6.5 Creedmoor +Peak offers. Due to the variety of suppressor designs on the market, shooters are encouraged to contact their specific suppressor manufacturer for questions regarding the use of high-performance ammunition.
Q: How do Peak Alloy cases compare to legacy steel cases?
A: It is a completely different type of steel with superior mechanical properties. Peak Alloy cases are also nickel plated.
Q: What bullets will Federal load in 6.5 Creedmoor +Peak at launch?
A: Federal is launching the cartridge with Terminal Ascent, Fusion Tipped, Barnes LRX, Berger Elite Hunter and Sierra Tipped MatchKing.
Q: What is the twist rate recommended for this new cartridge, and is it dependent on bullet weight?
A: All available bullet weights of 6.5 Creedmoor +Peak are compatible with rifling in new and existing 6.5 Creedmoor barrels. No special twist rate is needed. Refer to your firearm manufacturer resources for rifle-specific information.
Q: Is this cartridge specifically designed for use with a suppressor?
A: No, 6.5 Creedmoor +Peak performs equally well through both suppressed and unsuppressed rifles.
Q: What suppressor does Federal recommend for this new cartridge?
A: Federal is a proud partner of Silencer Central, and the company offers a variety of excellent suppressor choices.
Q: Are published ballistics for this cartridge generated with or without a suppressor?
A: Federal generated 6.5 Creedmoor +Peak velocities through standard, un-suppressed barrels.
Q: Will there be other +Peak cartridges in the future?
A: Through developing 6.5 Creedmoor +Peak and its predecessor, 7mm Backcountry, Federal has pioneered a fundamentally new way of designing cartridges and building ammunition. Armed with this technology, it’s natural to expect new cartridges with different bullet diameters down the road. Follow us on social media for the latest updates on Peak Alloy technologies.
Q: What is the price?
A: 6.5 Creedmoor +Peak will be priced similarly to standard 6.5 Creedmoor offerings of the same bullet type.
Q: When will 6.5 Creedmoor +Peak loads be available?
A: Federal plans to begin shipping the full lineup of 6.5 Creedmoor +Peak products to dealers in summer 2026. Sign up to be notified at federalpremium.com.
